Details

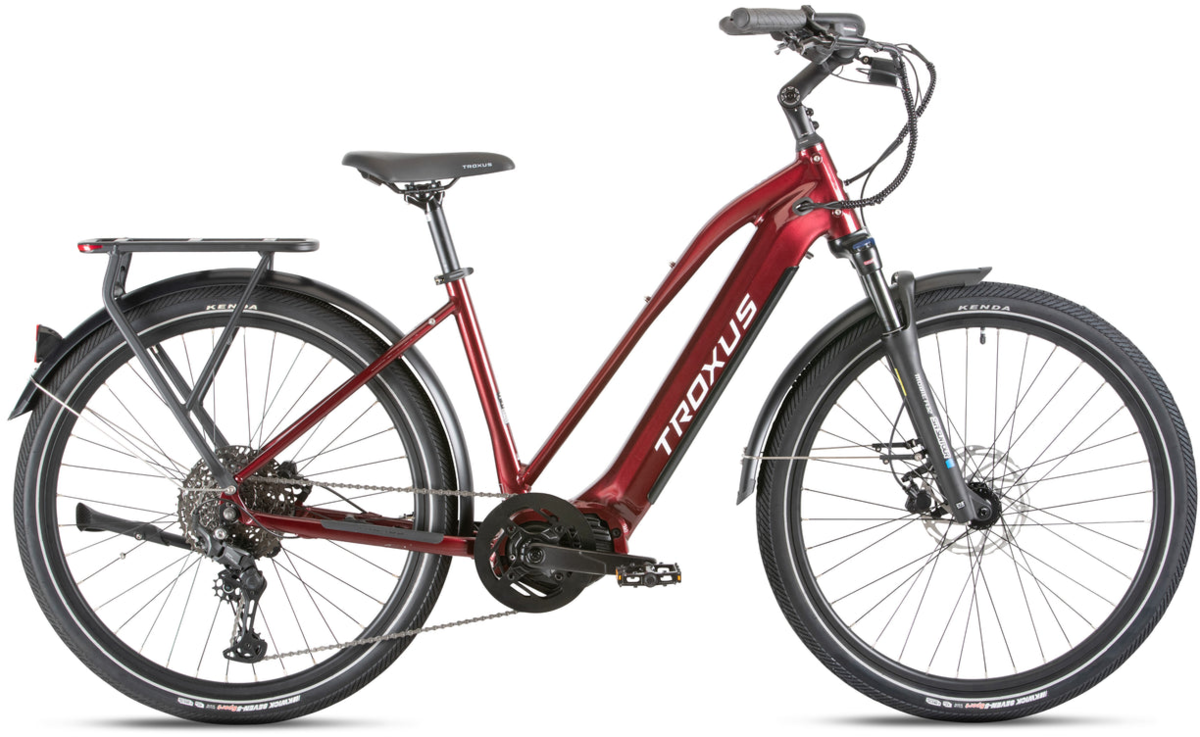

For riders who want the more natural ride feel and technology of a mid-drive motor, the new and sophisticated Trax Mid delivers the same long-range efficiency of the original Trax series. The powerful 500W Bafang mid-drive motor is paired with a 15Ah battery that delivers speeds up to 28MPH and a range of 35-60 miles. Tektro hydraulic disc brakes deliver reliably powerful braking in all conditions, for increased safety. The new Shimano CUES 11-speed drivetrain insures that you always have the right gear to meet your riding needs- even with cargo. Impressively light at 60 lbs. depending on frame size, the Trax Mid is ready for your commuting and fitness adventures.

Maximum Load: 330 lbs

Geometry

Sizes:
Frame Size	Small	Medium	Large
Wheel size	27.5" x 2.4"	27.5" x 2.4"	27.5" x 2.4"
Seat tube (mm)	394	445	483
Seat tube angle	73°	73°	73°
Head tube length (mm)	145	145	145
Head angle	68°	68°	68°
Effective top tube (mm)	605	615	630
Bottom bracket height (mm)	291	291	291
Bottom bracket drop (mm)	60	60	60
Chainstay length (mm)	470	470	470
Offset (mm)	46	46	46
Wheelbase (mm)	1158	1168	1183
Frame Reach (mm)	415	425	440
Frame Stack (mm)	622	622	622
Fork Travel (mm)	75	75	75
Fork Height (mm)	477	477	477

Specs

Frame	Aluminum Frame
Fork	Suntour Mobie 32 Suspension Fork, 75mm Travel, 15mm Thru-Axle
Rims	Alloy, Double Wall, 20mm Inner Width, 36H
Hubs	Front: Sealed Bearing, 100mm, 15mm Thru-Axle, 36H Rear: Sealed Bearing, 135mm, 3/8" Axle w/ Nuts, Cassette Body, 36H
Spokes	Stainless 13G
Tires	KENDA 27.5"x2.2", W/ Reflective Stripes, Puncture-Resistant, E-50 Rated
Crankset	Aluminum, Bafang 42T, w/ Single Alloy Chainguard, Square Taper, 170mm
Shifters	Shimano CUES 11-Speed
Rear Derailleur	Shimano CUES, GS, 11-Speed
Cassette/Freewheel	Shimano 11-Speed,11-45T
Chain	Shimano 11-Speed
Brakes	Tektro Hydraulic, w/ Brake Sensors
Rotors	180mm / 180mm
Handlebars	Zoom Alloy, 31.8mmx660mm, 35° Backsweep
Tape/Grips	Ergonomic Comfort
Stem	Zoom Alloy, 3D forged, Adjustable, Ext. 90mm
Headset	Threadless Internal, Tapered 1.5"
Seatpost	Alloy, 30.9x350/400mm, Adjustable
Saddle	Selle Royal
Pedals	Aluminum Platform
Accessories & Extras	80 Lux Front Light & Rear Light
Motor	Bafang 48V/500W Mid-Motor, 130Nm Max. Torque
Battery	UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung Cells
Controller/Display	Bafang Color Display, Bluetooth, w/ Multi-Function Remote
Charger	3A / 100-240V Input / 54.6V Output

* Subject to change without notice.
