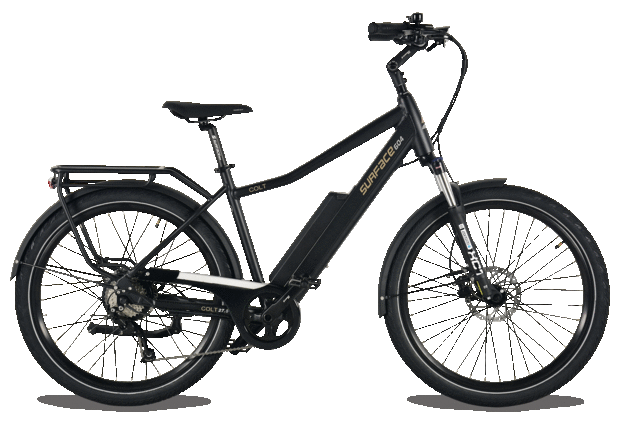

Surface 604 Colt

World class torque sensing pedal assist - because an electric bike is only as good as it’s power distribution.

Precision torque sensing performance at 104 cadence pulses per revolution; 1,000 torque samples per second.

Colt’s incredibly smooth torque sensor knows how hard you’re pedaling down to the microsecond and matches it with proportionate power.

Custom drop out design delivers whisper smooth assist at any level.

BAFANG 48V 500W electric motor purpose built for speed and power. Enjoy the quiet and consistent power distribution at any speed.

Geared for performance - we paired all that power with an industry-leading 12mosfet 25A controller giving the Colt unmatched torque and speed.

Leave other riders envious as you effortless fly past.

Offering a high-capacity battery: 48V20ah (960wh) 5000mah cell size, (Same as in Tesla), Samsung Cells 21700, Made in Korea, USB Plug, capacity indicator button.

MOTOR
500W (Peaks At 750W) Bafang Geared Hub Brushless Motor

DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle

TORQUE
65Nm of Torque

THROTTLE
Thumb Push Activated Throttle

CONTROLLER
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

TOP SPEED
20mph (32kmh)*, Comes as Class 2
(Unlocked) 28mph (45kmh), as Class 3

BATTERY
Included: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells

BATTERY RANGE
Upto 65mi (105km) with a 48V20Ah Battery

BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty

DISPLAY TYPE
SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2024

LIGHTS
BÜCHEL "Secu Forte" LED Head Light with 150 lumens and BÜCHEL Rear LED light

FORK
SR SUNTOUR XCM 27.5, 80mm with Quick Release

MOTOR WIRE HARNESS
30Ah, can handle up to 120C current (upgraded)

DERAILLEUR
SHIMANO ALIVIO 9-Speed

CASSETTE
SHIMANO 11-36T Cassette

SHIFT LEVERS
SHIMANO ALIVIO

BRAKES
TEKTRO Auriga Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors

CRANK SET
SAMOX 42T Front Sprocket

ROTORS
180mm Front/Rear x 2.34mm Thick

BOTTOM BRACKET
SAMOX Sealed Bottom Bracket

FRAME TYPE
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes

FRAME MATERIAL
6061 Aluminum Alloy

STEM
SATORI Up2+, Adjustable

HEAD SET
HANDLEBAR
PROMAX Aluminum, 30mm Rise With 15° Backsweep
700mm Wide

PEDALS
WELLGO Platform, with Die Casting Body

CHAIN
KMC 9-Speed

SEAT POST DIAMETER
30.4mm

SADDLE
Selle Royal Gel Saddle "Essenza Plus"
with elastomer (Relaxed)
suitable for City/Tour use
FLEXITE shell features a unique indented structure,
adding superb flexibility and shock absorption
Adjustable up to 9 degrees.

WHEELS/TIRE
27.5" X 2.4" Custom S604 Panaracer Tires With Puncture
Protections With Reflective Sidewall

RIMS
Aluminum Alloy Double Wall Rim, 27.5”x13Gx36H

FRONT HUBS
Surface604 Aluminum

KICKSTAND
Adjustable Heavy-Duty Aluminum

STANDOVER HEIGHT
Small-Medium: 28.5” (724mm)"
Medium-Large: 30” (762mm)

RECOMMENDED RIDER HEIGHT
Frame Sizes: S/M - 17.5", M/L - 19.5"
For Riders: S/M 5’2”-5’7”, M/L 5’8” - 6’6”

NET WEIGHT (INCLUDING BATTERY)
27.75KG/61lbs (20AH)

BATTERY WEIGHT
20AH battery 4.65KG/10lbs

WEIGHT CAPACITY
285lbs (130kg)

STANDARD FEATURES
Welded Rear Rack, Adjustable Kickstand
Chain Guide, Water Bottle Bosses

OPTIONAL UPGRADE FEATURES
NCX Suspension Seat Post
