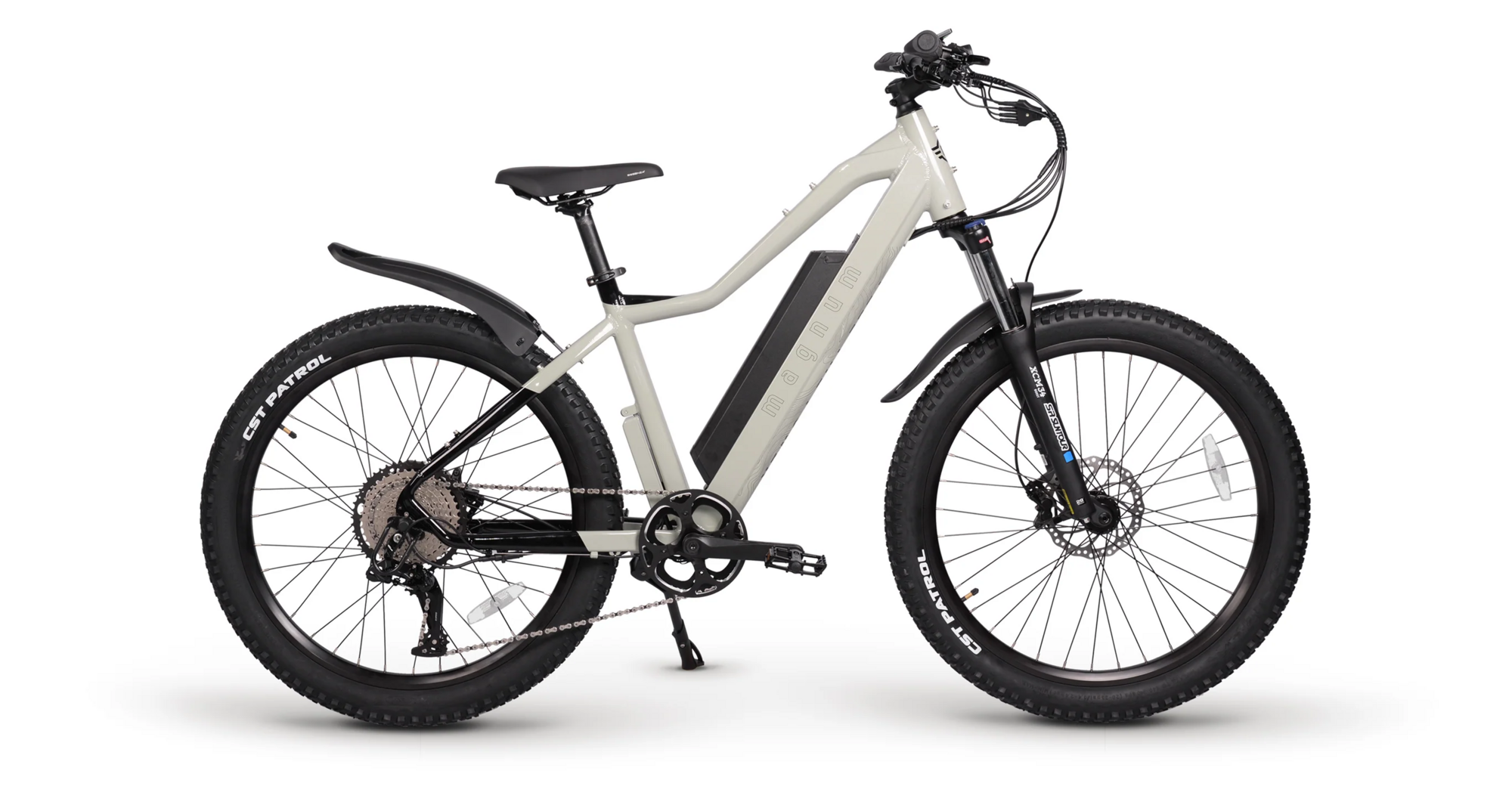

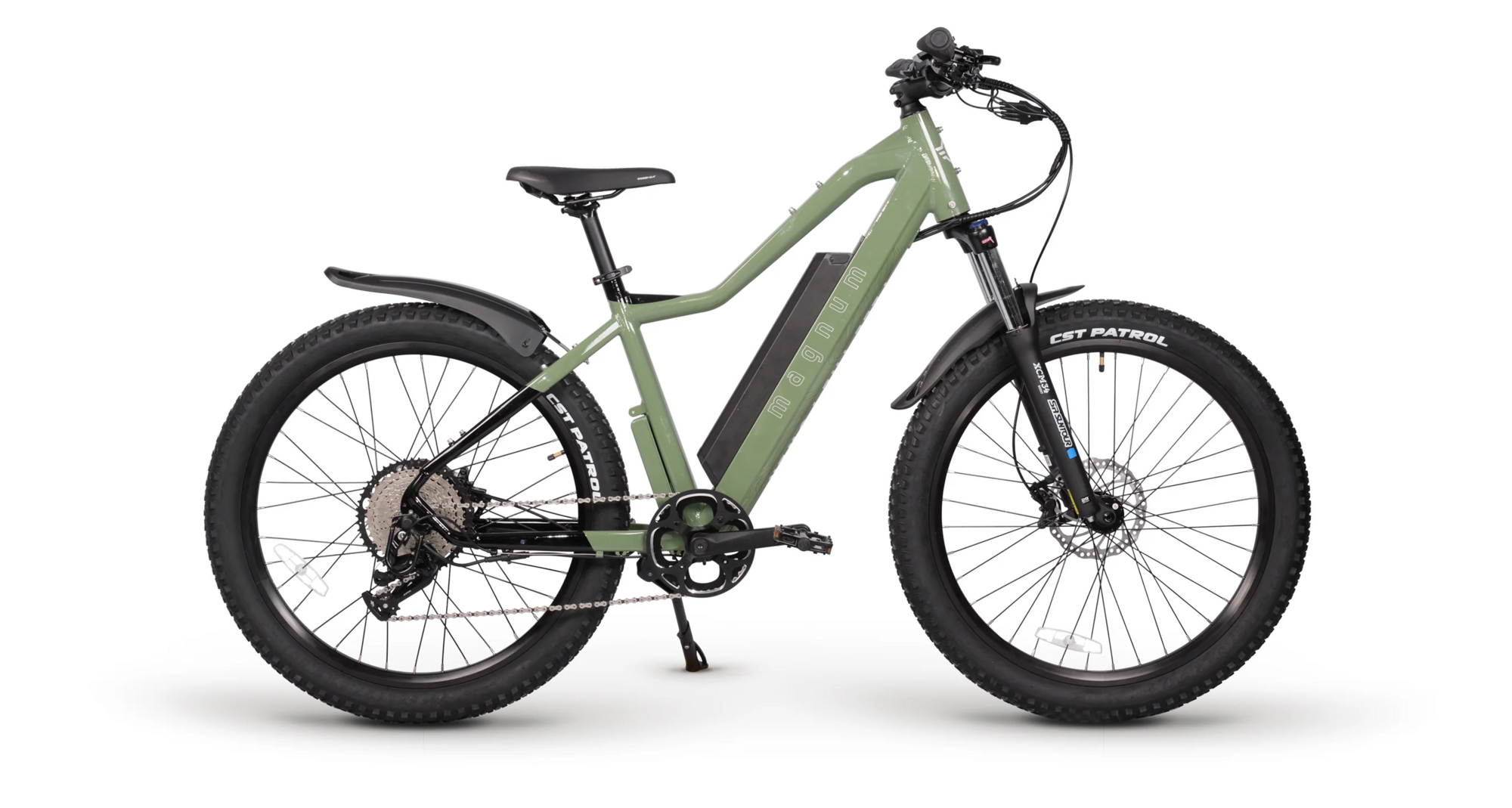

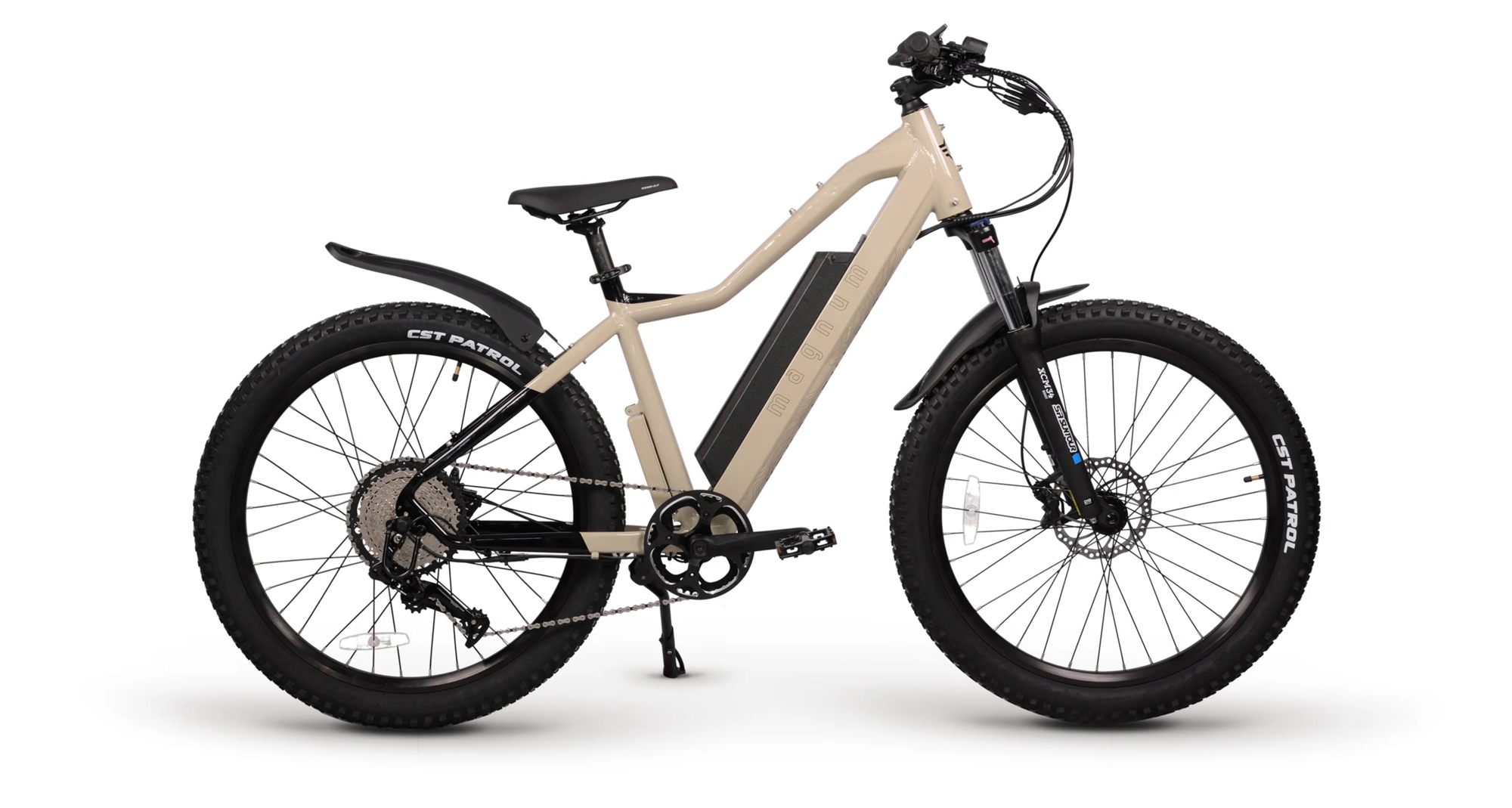

Magnum Bikes Peak T5 - Free Front Rack!

Magnum Bikes Peak T5 - Free Front Rack!
  • Color: Tan/Black
  • Color: Blue/Black
  • Color: Grey/Black
  • Color: Forest/Black
$2,299.00
$2,699.00
Color:
Size: One Size 5'6"-6'4"
Wheel Size: 27.5-inch
Please select options Unavailable
Order now and pick up in-store for free.

Details

The Peak T5 begins where the road ends! It has a torque pedal assist sensor that combines power from the rider and the motor for the ultimate in smoothness and control. A wide range drive train and a robust power system make the Peak T5 an ideal choice for trail riding.

Highlights:
- Category: Mountain
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: High-step, MTB Cross-Country
- Seating: Active
- Perfect For: Gravel / Trails / Off-road

THE BATTERY.
Long-range (up to 50 miles) battery for the freedom and power to tackle longer rides

15Ah
50 miles (80 Kilometers) Max Range
7.5 Hours Charge Time

TORQUE-SENSING PEDAL ASSIST
Amplify your effort.

The torque-sensing pedal assist feature adds just the right amount of power from the motor to amplify your effort. It feels just like riding a regular bicycle, but with greater ease and comfort.

Sizes:
Seat Tube19” (48 cm)
Reach 14.5” (37 cm)
Stand Over Height 31” (78.5 cm)
Virtual Top Tube Length 23.25” (59 cm)
Min Saddle Height 22” (56 cm)
Max Saddle Height 31” (78.5 cm)
Width 28.75” (73 cm)
Wheelbase 45.75” (116 cm)
Length 74” (188 cm)
Total Weight 66 lbs. (30 kg)
Battery Weight 9 lbs. (4 kg)
Recommended Minimum Rider Height 5’6”

Specs

Fork XCM34-Boost
Stem Magnum 60mm
Tires CST Patrol 27.5 x 2.8"
Brakes Logan Hydraulic Disc Brakes
Saddle Selle Royal Essenza+
Crankset Aluminum Alloy, 42T, 170mm
Shifters A11-X 11-Speed
Tape/Grips Black
Motor Bafang Rear Gear Hub-Drive Motor 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.
Pedals Wellgo
Battery 48V, 20Ah, 960Wh
Charger 30-60 miles per charge.
Controller/Display Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD. Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time. Torque Sensing Pedal Assist, Trigger Throttle, Walk Mode.

* Subject to change without notice.

Videos

Part Numbers

Option UPC Store SKU
Tan/Black / One Size 5'6"-6'4" / 27.5-inch 789554756211 210000004713
Blue/Black / One Size 5'6"-6'4" / 27.5-inch 789554756181 210000004839
Grey/Black / One Size 5'6"-6'4" / 27.5-inch 789554756204 210000004715
Forest/Black / One Size 5'6"-6'4" / 27.5-inch 789554756198 210000004714
