Bianchi T Tronik C-Type

DESIGNED TO MEET YOUR NEEDS
Make everything simpler and feel the happiness grow inside. The useful, adaptable electric assistance of the T-Tronik makes your daily travel effortlessly easy, so you can focus on all the things that make you smile.

It’s time to embrace easy.

URBAN EXCITEMENT
The T-TRONIK C-TYPE is an exciting urban bike with a frame designed around accessibility. From city commutes to leisure rides, this bike is the perfect ride partner for urban surroundings.

Ride around the city easily with the step-through frame, making riding achievable without sacrificing style.

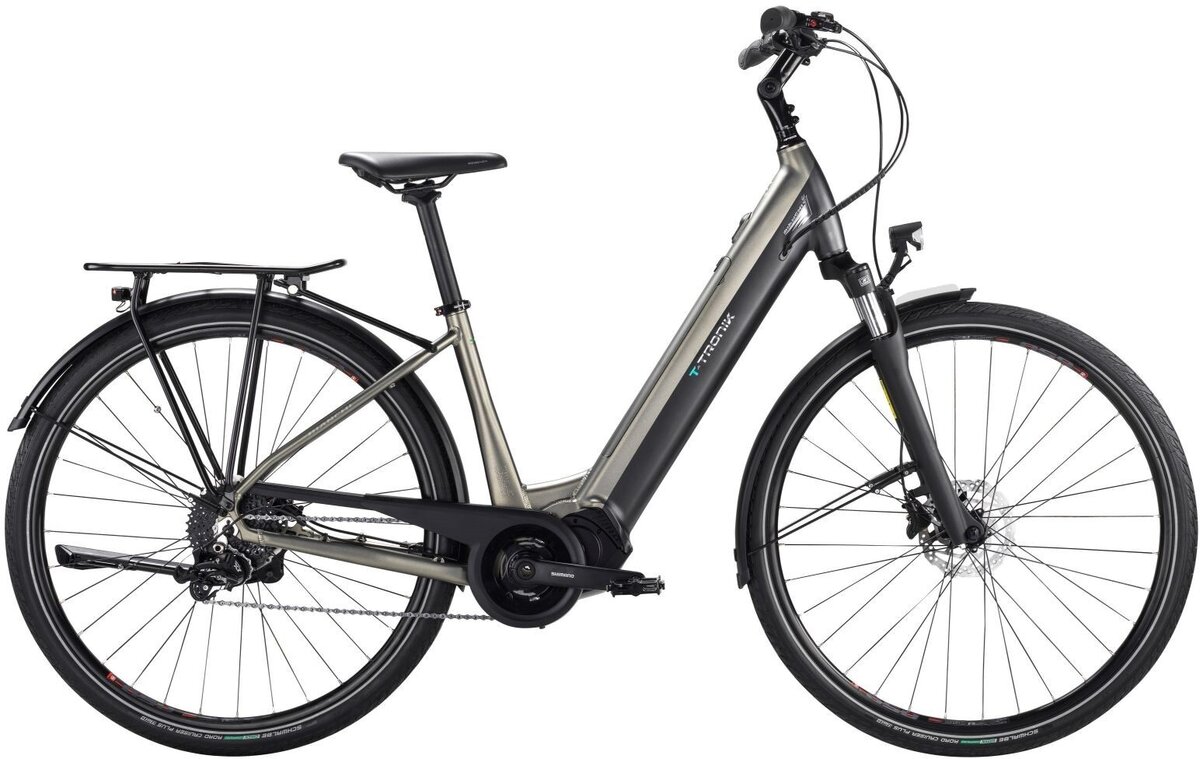

IRIDESCENT BRONZE: Feel the connection to nature with the airy Iridescent Bronze combined with Dark Graphite finishing touches
BLUE STONE: An elegant darkened blue combined with Dark Graphite, the Blue Stone is the picture of elegance

TECH SPECS
MOTOR UNIT
MOTOR
Shimano E6100, 250W, 60Nm
BATTERY
417Wh integrated battery
FRAMESET
FRAME
T-Tronik C-Type ALU sizes: 43, 47 - 9x135 mm quick release dropouts - Post mount 160 disc brake type
FORK
Suntour NEX-E25 DS 700C, 63mm travel, 1-1/8" HT,w/out 9x100 QR , minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions
HEADSET
FSA HST STbk 1-1/8" 44H-N10P
DRIVETRAIN
SHIFTERS
Sram X5, 9sp
REAR DERAILLEUR
Sram X7, 9sp, max. 36T
CRANKSET
Shimano CHAINRING, SM-CRE61, 38T FSA SMN E-Bike Forged Crankset - SMN / 170mm
BOTTOM BRACKET
included in the motor
CHAIN
KMC e9S NPBK
BRAKES
BRAKES
Promax, DSK-925
ROTOR
Promax DSK-925, 160mm, center lock
WHEELS
WHEELS
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm
REARHUB
Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM
FRONTHUB
Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM
TIRE
Chaoyang E-Liner City 700x45C, 60tpi
COCKPIT
STEM
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm
HANDLEBAR
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
GRIPS
Herrmans GRIPset Oxy
SADDLE
SEATPOST
Velomann, lenght 350mm for SM size and 400mm for MD, diam.31,6mm, 0mm seatback
SADDLE
Selle Royal
ACCESSORIES
PEDALS
VP black aluminum, axle 7mm, 113,5x110,5mm
MUDGUARDS
SKS PET Mudguards A60 S /28"
KICKSTAND
Ursus, load 35kg
REARCARRIER
Racktime, 28", Max load 25Kg
FRONTLIGHT
Herrmans Mr GO e-bike 6/12 V
REARLIGHT
Axa Juno e-bike 6/12 V
