Details

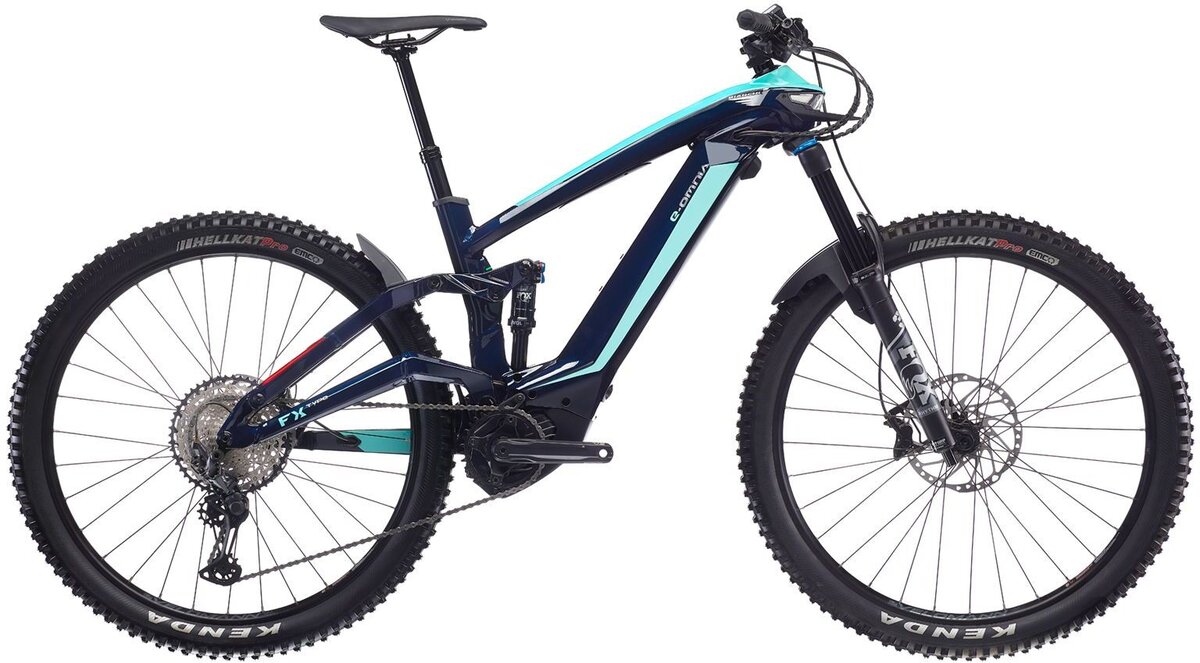

The FX Type is the most capable MTB model in the E-Omnia platform. It is designed for expert riders who love to shred trails and seek out fun on two wheels.
DESIGNED FOR
Hardcore biker who makes e-mtb his main sport and wants an aggressive trail bike to have fun conquering every climb and having total control on the descent.
KEY FEATURES:
- Battery: 500WH | 625WH
- Torque: 85Nm
- Autonomy: 142Km
- 150mm full suspension aluminum MTB frame
- Gravity casting aluminum tubes
- Integrated front (40lux), rear and side led lights. Visibility range of 100 meters, and visibility to others at 500 meters.
- Bianchi custom mudguard
- Integrated seat clamp
- High capacity battery (Bosch 500Wh or 625Wh)
- 4 pistons caliper brakes
- Front-wheel ABS option

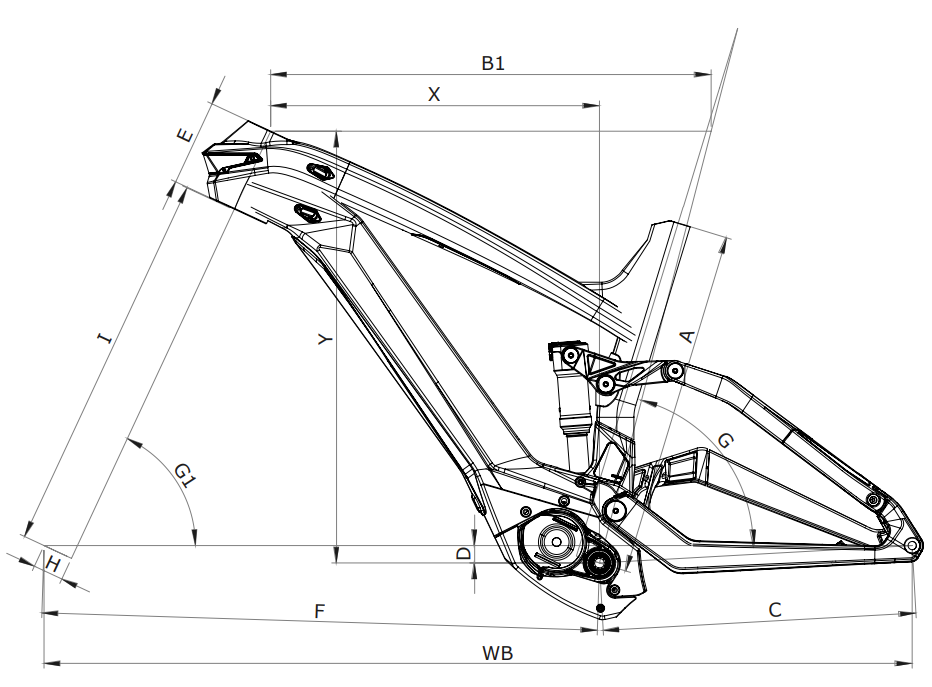

Medium | Large | X-Large | |
---|---|---|---|
A (mm) | 430 | 480 | 530 |
B1 (mm) | 600 | 620 | 640 |
C (mm) | 458 | 457 | 455 |
D (mm) | 27 | 27 | 27 |
E (mm) | 116 | 121 | 126 |
F (mm) | 764 | 786 | 806 |
G | 75.5° | 75.5° | 75.5° |
G1 | 65° | 65° | 65° |
H (mm) | 44 | 44 | 44 |
I (mm) | 557 | 557 | 557 |
X (mm) | 440 | 459 | 477 |
Y (mm) | 619 | 623 | 627 |
WB (mm) | 1221 | 1241 | 1260 |
Specs
Frame | e-Omnia FX Type alloy FS 29""- Bosch Gen4, 150mm Alloy , 1.5"" tapered HT, seatpost diam.31,6mm, integrated seat clamp, PM 180mm dropout thru axle 12x148mm, internal cable routing inside DT, sizes 43,48,53 (MD; LG; XL) |
---|---|
Fork | Fox Float 36 Rhythm 29", 160mm travel |
Rear Shock | FOX FLOAT DPS PERFORMANCE |
Rims | Velomann ST30 TCS 2.0 29”, 30mm 29”, 32 hole drilling, Disc Only |
Hubs | Shimano FH-MT510-B |
Tires | Kenda Hellkat 29x2.6, 60tpi EMC, DTC compound, 66-622 folding type |
Bottom Bracket | Included w/motor unit |
Crankset | FSA CK-762/IS Forged Alu crank 165 mm ISIS blackFSA 1x Alloy Spider, Boost148 / Alloy / SB black / for SMN/SRAM 12SPFSA ISIS CrMo M15 crank arm bolts ML054Chainguide custom 30-38T |
Shifters | Shimano Deore SL-M6100-IR 1x12sp |
Rear Derailleur | Shimano XT RD-M8100-SGS Shadow Design + 12sp |
Cassette/Freewheel | Shimano CS-M7100-12, 12sp, 10-51T |
Chain | SHIMANO CN-M7100 12SP |
Brakes | Shimano BR-MT520 |
Brake Levers | Shimano BL-MT501 |
Handlebars | Velomann rise, width 780mm, diam.35mm, rise 20mm, backsweep 9°, double butted AL7050 |
Tape/Grips | T-One Rock T-GP34 |
Stem | Velomann +/-0°, 1.1/8", diam.35mm, lenght: 50mm |
Headset | Fsa NO.55R/558 1.5" |
Seatpost | VELOMANN DROPPER SEATPOST, DIAM. 31,6MM, INTERNAL REMOTE CABLE ROUTING W/REMOTE CONTROL FOR 1X DRIVETRAIN, 120MM TRAVEL-43CM, 150M TRAVEL-48/53CM |
Saddle | Velomann 1285URN, manganese rail, lenght 277mm x width 144mm |
Pedals | Sold separately |
Accessories & Extras | BIANCHI CUSTOM MUDGUARDS, INTEGRATED CUSTOM FRONT AND SIDE LIGHT MADE W/SPANNINGA, Spanninga integrated rear lights |
Motor | BOSCH PERFORMANCE LINE CX 250W 85NM |
Battery | BOSCH POWERTUBE 625WH |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Blu Notte/CK16 Full Glossy / Medium | 08032809857037 | YRBA4UMDBC |
Blu Notte/CK16 Full Glossy / Large | 08032809856962 | YRBA4ULGBC |
Blu Notte/CK16 Full Glossy / X-Large | 08032809857105 | YRBA4UXLBC |
