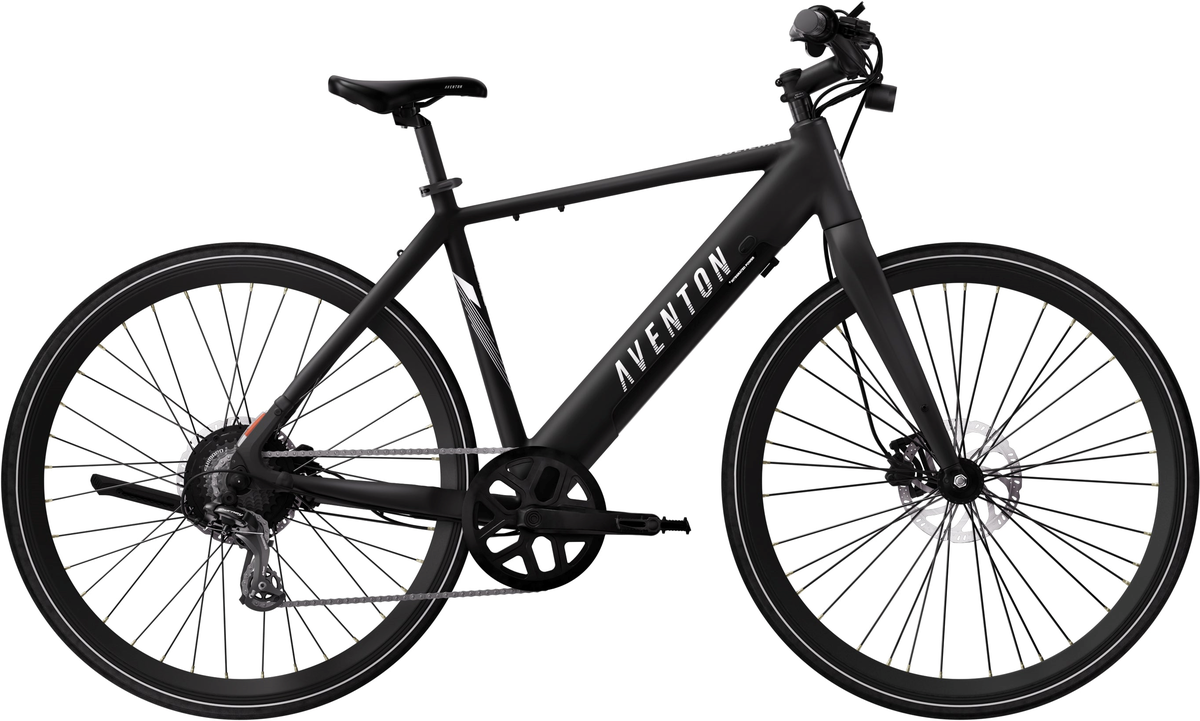

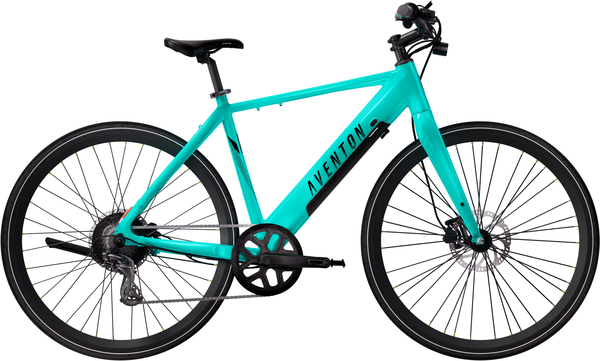

Aventon Soltera 2.5

Revolutionize your ride with the Soltera 2.5. Designed for performance and versatility, the exceptional handling and upgraded componentry puts you in command of every ride. Now with hydraulic brakes and faster rolling tires, the Soltera 2.5 is sure to elevate every ride. The lightweight frame design and advanced torque sensor technology pair perfectly to ensure you can seamlessly conquer your commutes or take a cruise through the city with maximized efficiency. Integrated turn signals ensure you stay visible and safe, giving motorists and pedestrians clear communication, day or night. Hop on the Soltera 2.5 and put your pedals to the pavement, more road awaits.

General Info
Model - Soltera 2.5 Ebike
Weight - 46 lbs
Total Weight Limit - 300 lbs
Rider Height - S 5'1"-5'5", M 5'5"-5'9", L 5'10"-6'2"
Box Size - 59 x 11 x 33
Class - Class 2 Ebike
Water Resistance - IPX4
Safety Certified - TUV Rheinland Certified in accordance with UL 2849
Battery Safety Certifications - Certified to UL 2271
Range - Up to 46 Miles
Ideal Use - Urban Riding
Pedal Assist - 4 Levels
Frameset
Frame - 6061 Double-Butted Aluminum Alloy with Internal Battery
Fork - AE-E09 Soltera AL fork
Rear Spacing - 142mm
Fork Spacing - 100mm
Frame Style - Step-Over
Wheelset
Front Wheel - 700c, 36-spoke, double-wall aluminum rim, black finish, with a nutted hub drive motor, 13g stainless steel spokes (267mm NDS/269mm DS), Presta valve.
Rear Wheel - 700c, 36-spoke, double-wall aluminum rim, black finish, with a nutted hub drive motor, 13g stainless steel spokes (243mm NDS/242mm DS), Presta valve.
Tires - Kenda K1085 700x38C
Ebike System
Speed - Class 2
Motor - 36V, 350W sustained, 540W peak brushless hub motor
Motor Torque - 45Nm
Display - Aventon BC280
Battery - Removable Internal Lithium-ion 36V,9.6Ah(345.6Wh) with LG Cells
Battery Weight - 4.14 lbs
Controller - 36v 15A
Throttle - Aventon LH Handlebar Mounted
Sensors - Double Sided Bottom Bracket Torque Sensor
Charger - 36V, 2 amp fast charger
Charging time from 0% to 100% - 4-5 Hours
Lights - Front and rear lights integrated
Brakes
Front Brake Rotor - 180mm 6 bolt
Rear Brake Rotor - 180mm 6 bolt
Front Brake - Tektro HD-T280 Hydraulic disc brake w/o e-cutoff
Rear Brake - Tektro HD-T280 Hydraulic disc brake w/o e-cutoff
Drivetrain
Rear Derailleur - Shimano Tourney RD-TY300D 7 speed
Shift Lever - Shimano 7 speed twist RevoShift
Chain - 7/8 speed 110 link
Freewheel - Shimano MF-TZ500-7 Freewheel, Speed : 7, 14-28T
Chainring - 48T
Chainring BCD - 130
Crankset- 3pc, 170mm crank arm
Bottom Bracket - Square Taper, Sealed, Dual-Sided Torque Sensor
Pedals - 9/16" Alloy Platform
Cockpit
Seatpost - Aventon 27.2
Seat Clamp - Aventon 31.8
Handlebars - Aluminum 31.8mm, 620mm
Grips - Lock on grips with twist shift
Headset - Aventon headset with integrated cable routing
Included Accessories
Kickstand - Included, rear mount

Technical Overview
Soltera 2.5 ships as a Class II ebike, with pedal assist and throttle. Soltera 2.5 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited.Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.*Max range determined using PAS Eco throughout flat terrain with a rider weight of 160 lb.
