Addmotor Spytan 2 M-320 2025 Version

Discover Spytan eTrike

Spytan ebike battery
20Ah UL-Certified Battery With Samsung Cells
48V*20Ah battery delivers a range of up to 90 miles. The battery is certified in the US and Canada keeps you safe.

Spytan ebike motor
750W Rear-Drive Motor
The motor is delivering superior performance and acceleration to add power to your riding experience.

Spytan ebike dual-headlights
Dual-Headlight
It provides a broader and more focused beam of light. This can improves visibility, making it easier to see and be seen.

Spytan ebike parking brake
Parking Brake System
You can park the trike on an incline, the parking brake provides additional safety and security.

Size & Fit
Rider Height - 4'9"-5'9"
Tire Size - 16" X 3.0" F/ 16" X 4.0" R
Reach -18.5"
Total Length - 77.4"
Wheel Base - 48.4"
Total Width - 34.1"
Standover Height - 11"
Saddle Height - 28"-35"
Handlebar Height - 44.1"
Front Rack Size - 23.43" x 15.75"

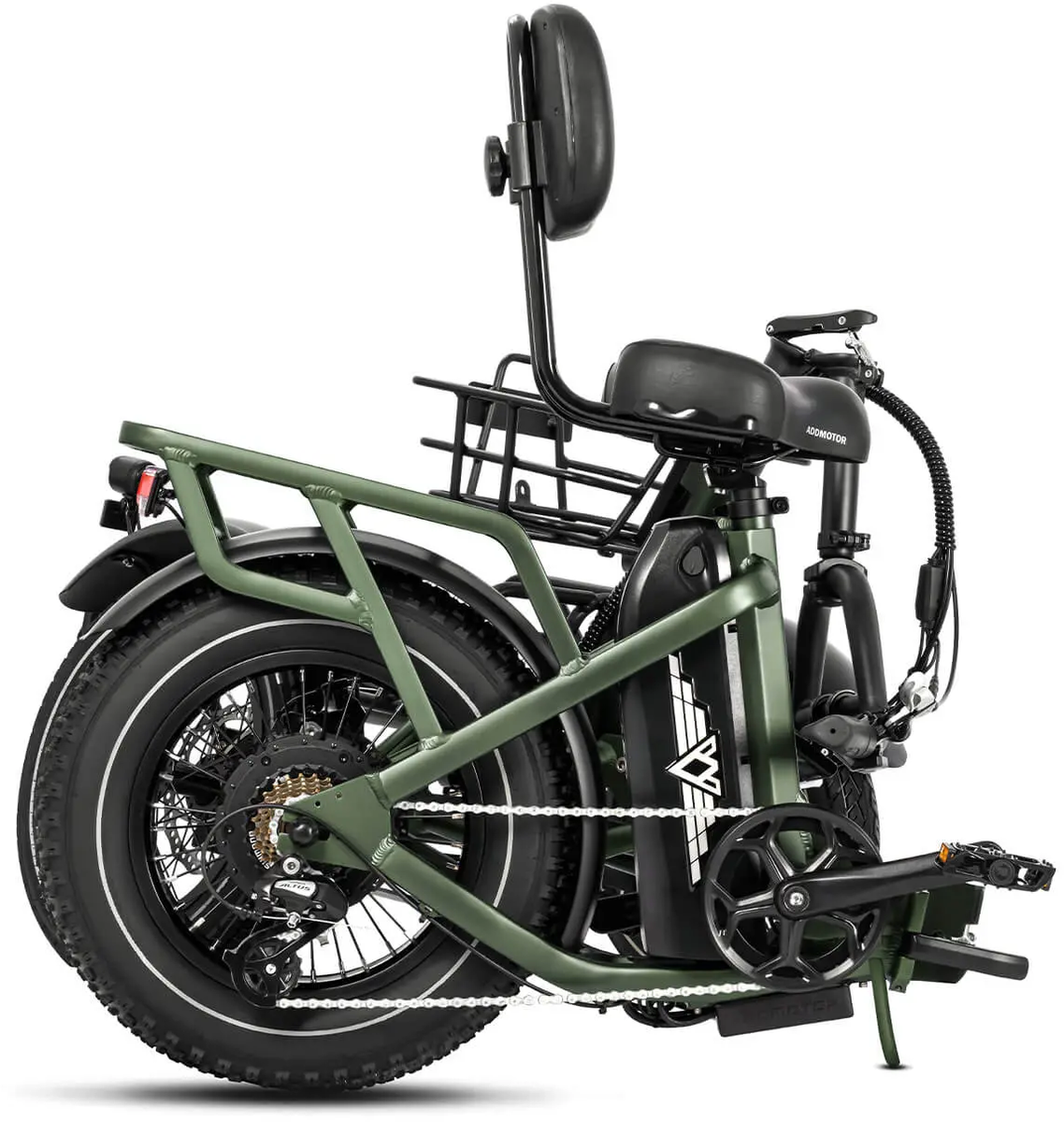

Folded Size - 50.4"L x 42.1"W x 31.5H(without saddle)

Technical
Charger - 48V*2.0A 5 Pins US Standard DC Charger 5 Pins With Auto Magnetic Suction
Battery - 48V*20 Ah Samsung UL-certified Battery
Speed - Up to 20MPH
Range - Up to 90 Miles(PAS1)
Motor - 48V*750W Rear-Mounted Brushless Motor
Payload - 380 LBS

Performance
Display - Addmotor EB 2.0 LCD Display
Controller - Addmotor 25A Controller
Throttle - Right Hand Half Twist Throttle with Switch
Lights - Latest EB 2.0 front lights and 5-in-1 taillight
Wiring - Water-Resistant Connectors and Wiring Harness
Pedal Assist - Intelligent 7 Level Pedal Assist; Speed Sensor
Frame - 7020 Aluminum Alloy Frame
Brake - Hydraulic Disc Brake
Brake Rotors - 180mm Front / 2*180mm Rear Rotors on 3
Wheels
Chain - KMC Rust Resistant Chain
Handlebar - Black Aluminum
Seat Post - Aluminum 270mm x 31.6mm
Derailleur - SHIMANO TOURNEY TY300 Rear Derailleur;7-Speed
Fenders - Aluminum Fenders; Front & Rear Included
Basket - Front Basket: Removable; Aluminum Front Rack: Removable; Aluminum; 80lbs Carrying Capacity
Trike Weight - 126 LBS (Including Battery)
